Stock ID : PM-1019

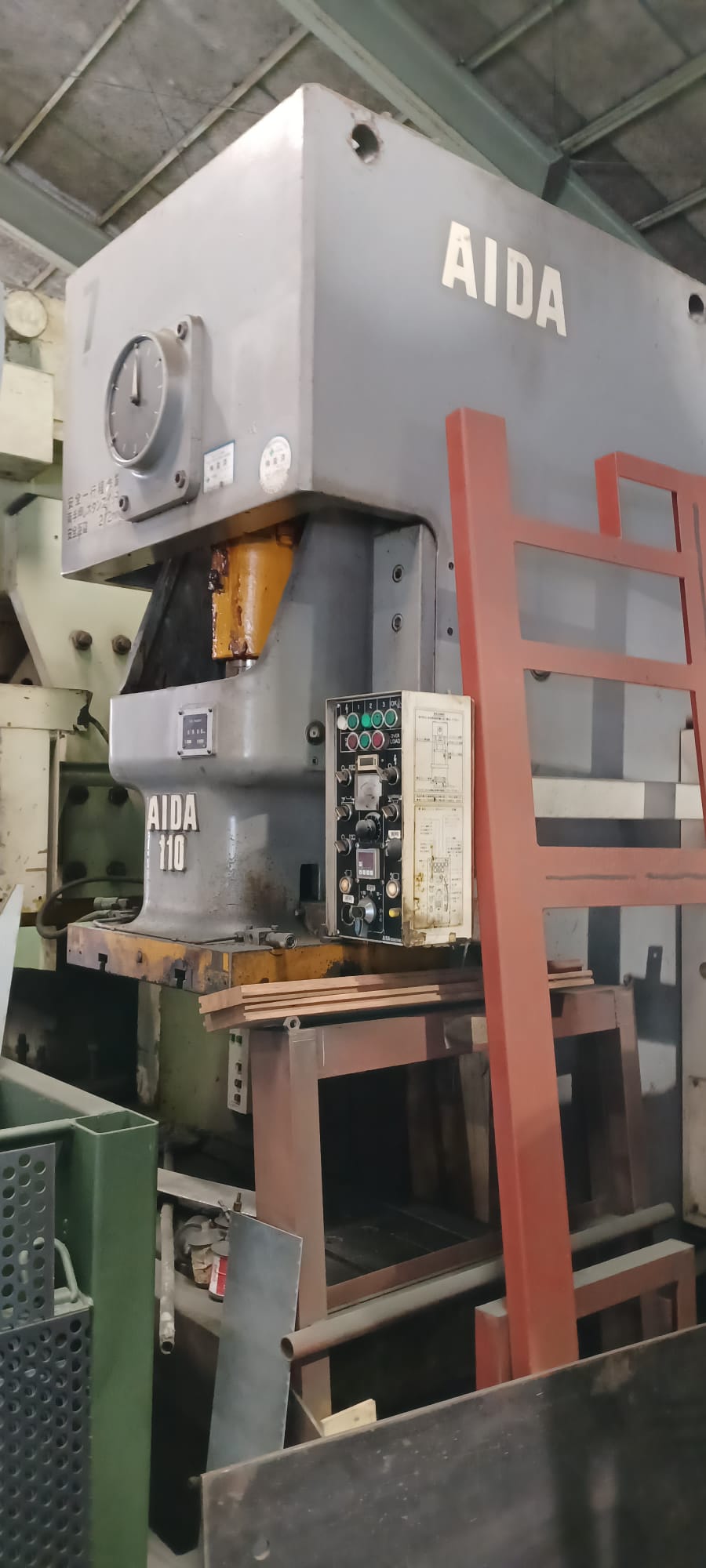

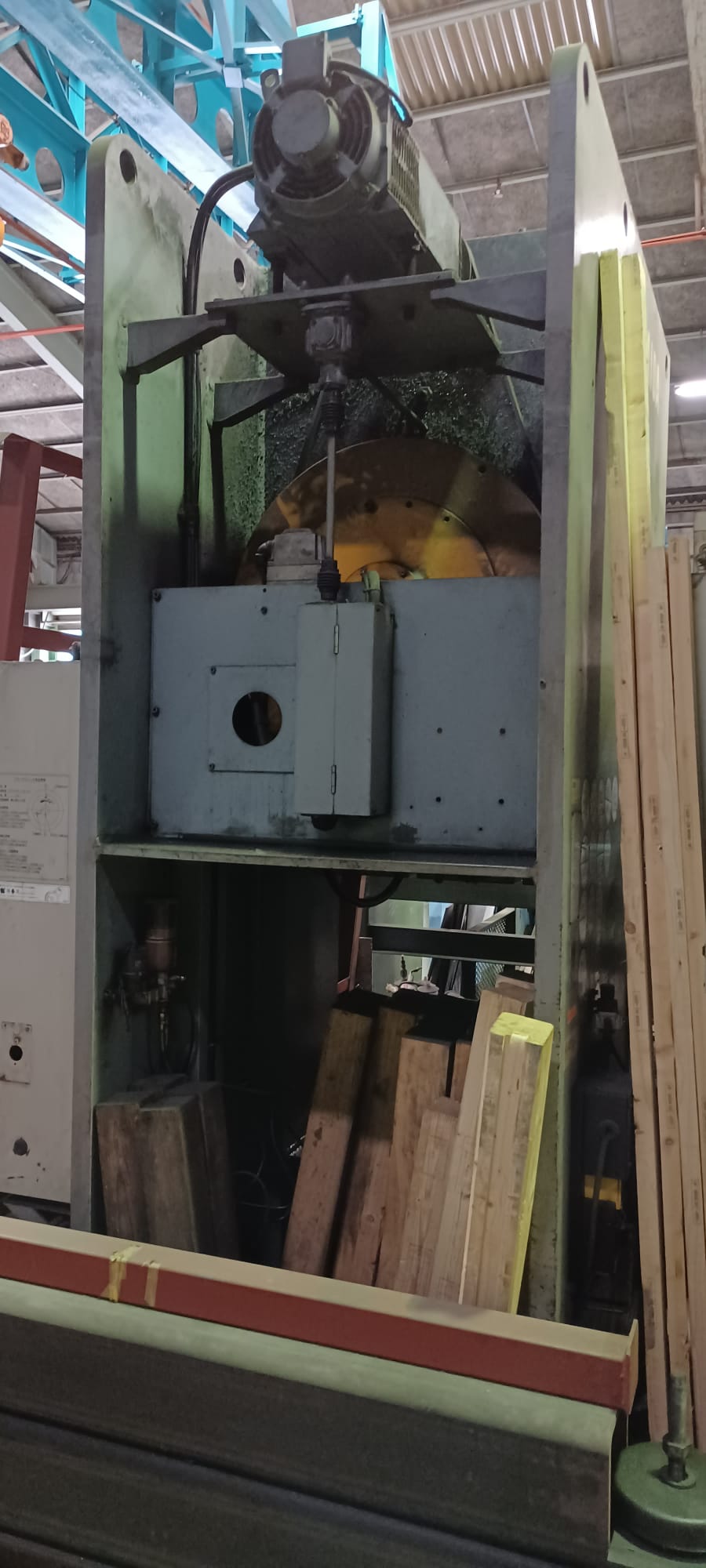

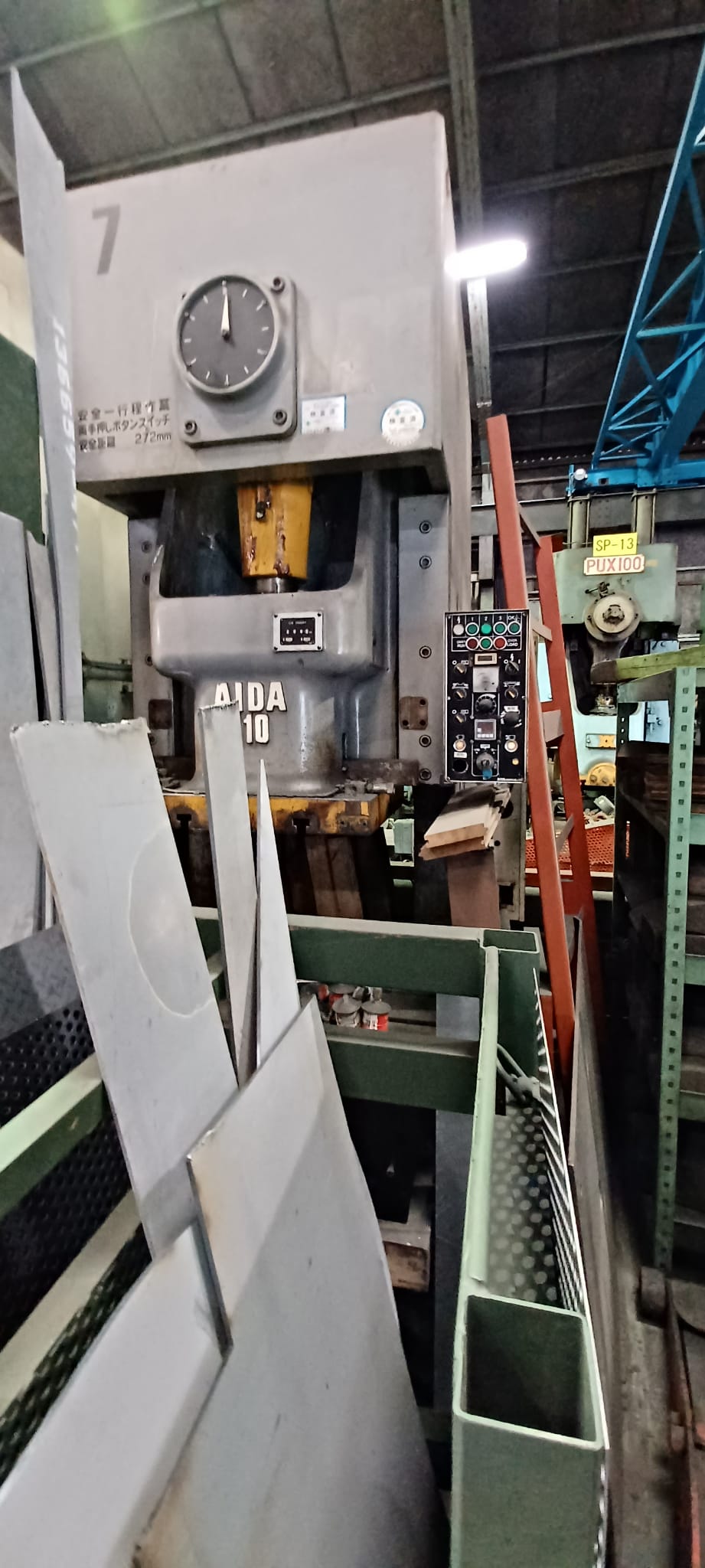

Name : AIDA NC1-110(2) 110TON PRESS

Manufacturer : AIDA

Model : NC1-110(2) (110TON)

PDF Spec : N/A  N/A

Location : Chennai

Video : N/A

Availability : In-Stock

Year : 1988

Price : Ask

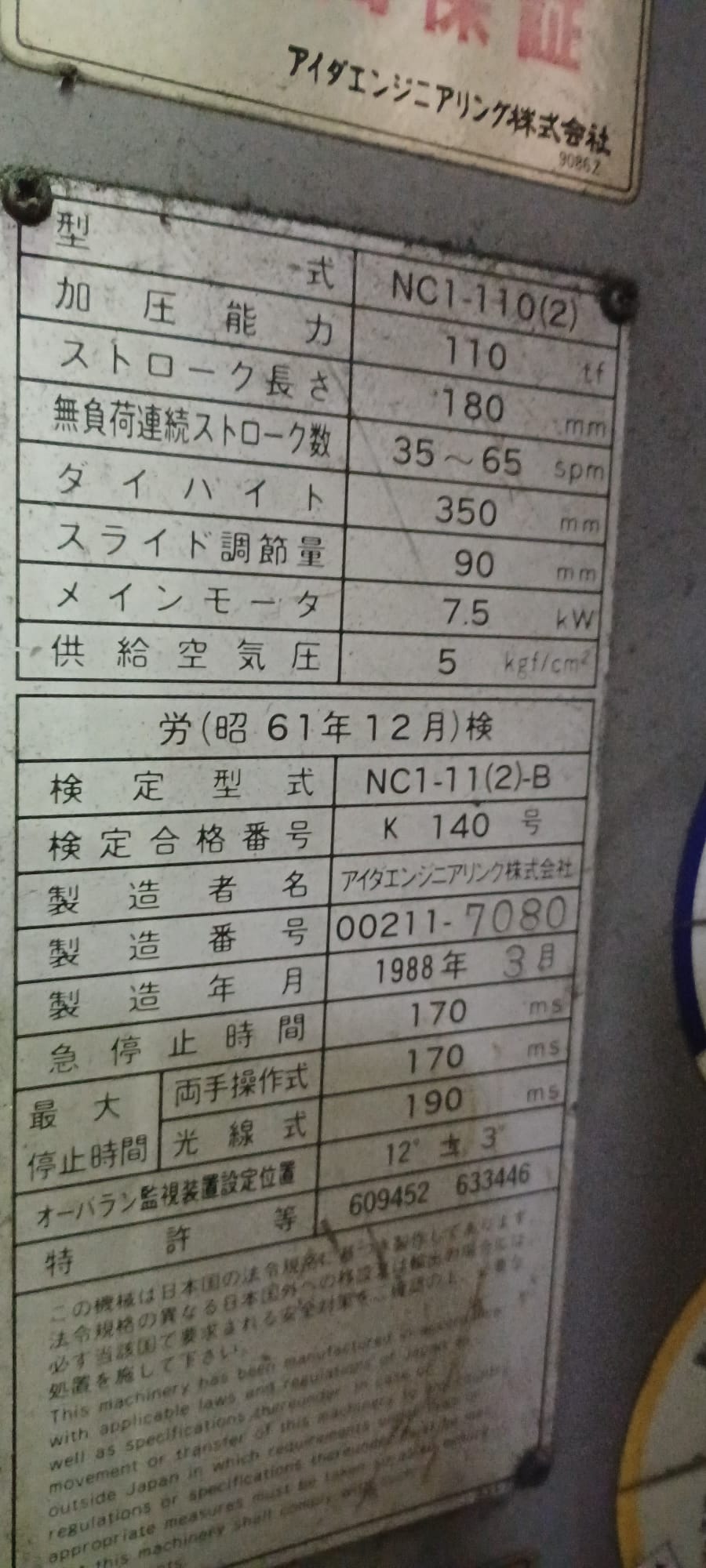

Specification :
AIDA 110TON PRESS
C Frame Single Crank Press
Processing capacity : 110Ton
Die height : 350mm
Stroke length : 180mm
Number of strokes : 65spm
Slide Adjustment : 90mm
Slide Bottom Surface : 670 x 500mm
Bolster dimensions : 1240 x 630mm
